Some smallish layout designs….

I haven’t posted any track plans for a while. So here are a few that have captured my imagination recently.

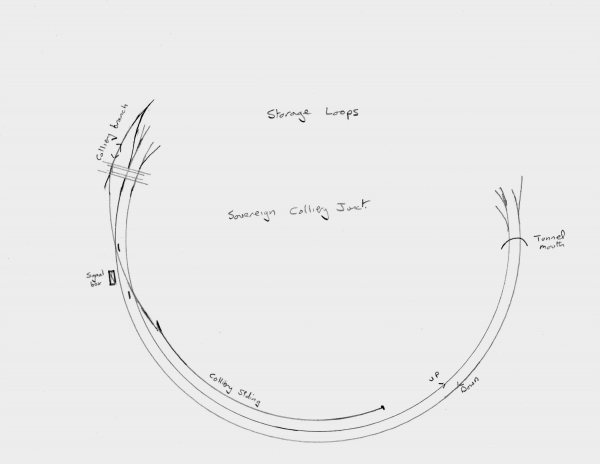

Alan Whitehouse’s ‘Mini-MSW’ model of the trans-Pennine Woodhead line, a delightful 5′ diameter 2mm fine-scale layout has a successor.  Same size, and concept, but I’m looking forward to seeing Sovereign Colliery Junction.

track_plan1

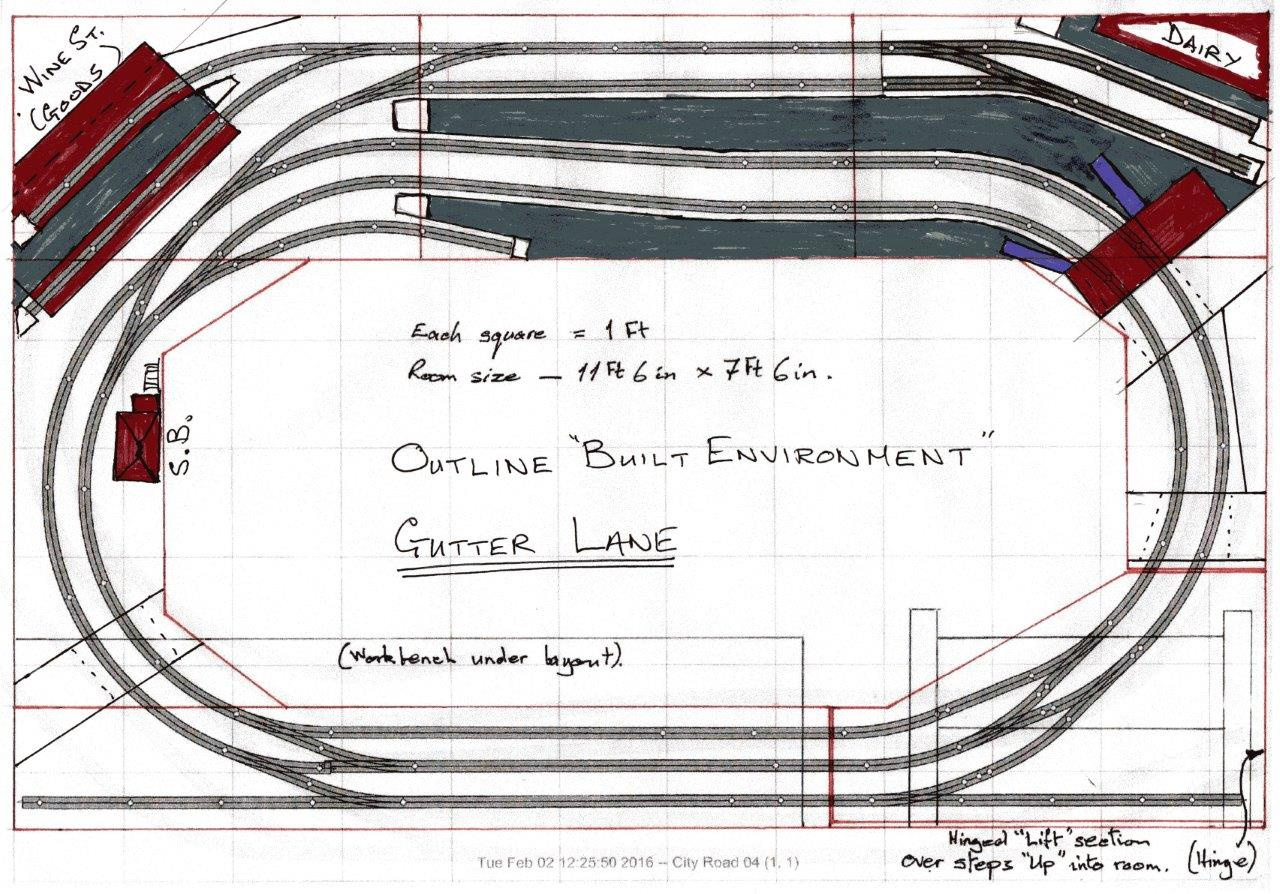

Two ‘old-school’ layouts.  The first is ‘Gutter Lane’ in coarse-scale ‘O’.  Continuous run, tight curves, but a rather satisfying design.  A lot of fun to run, I suspect.

564914617_Buildingsetc001.jpg.e93c08f4c0a655c63645a5127b96490f

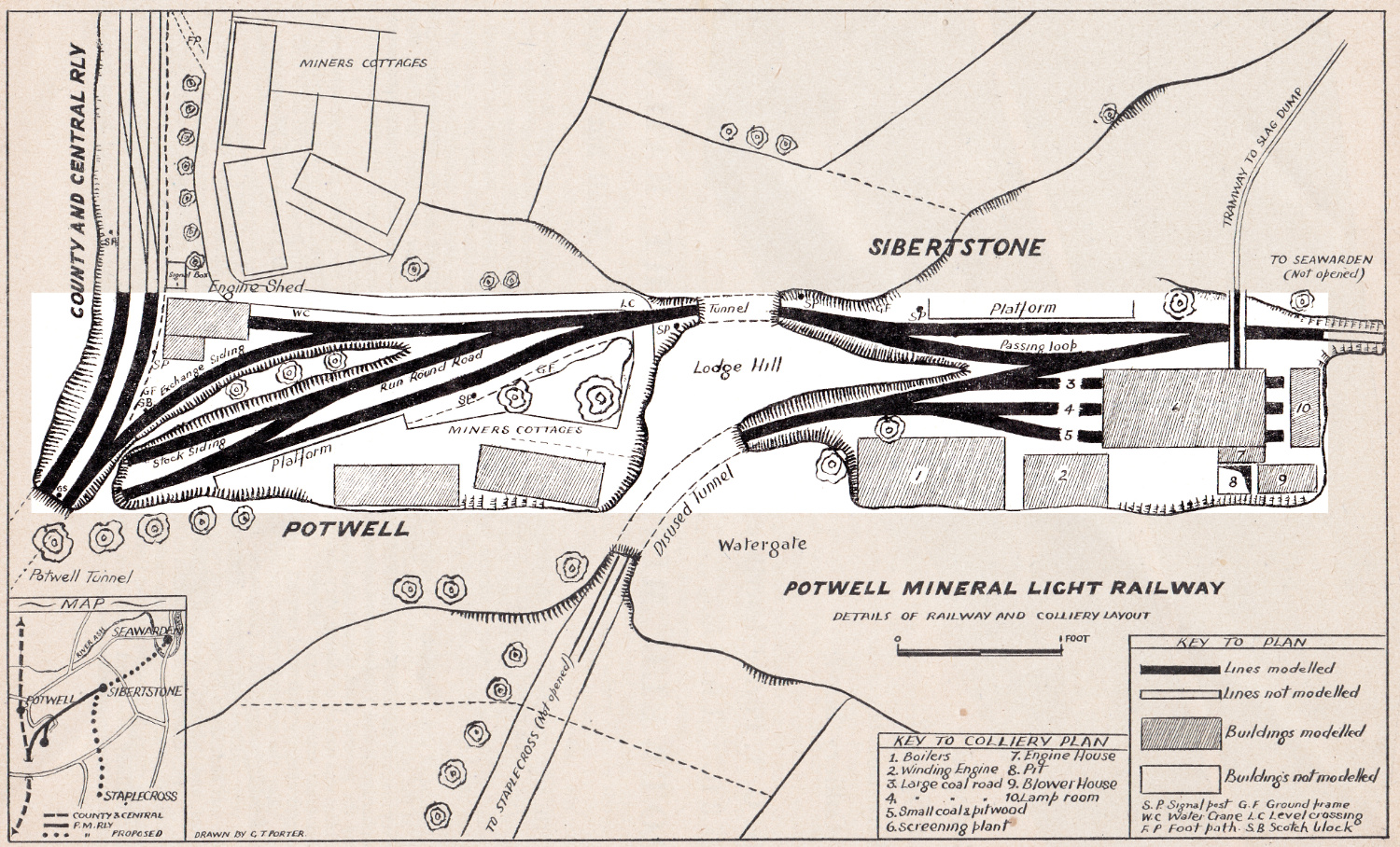

Then there’s the Potwell Mineral Light Railway.  Again in ‘O’ and loosely based on the KESR and similar light railways, this dates from way back, and if I remember correctly, was clockwork powered!  But a fun little line.

570664627_PotwellMineralLR_MRN7-1952.jpg.6721169125f2b09beee0c9b0d3501a6d

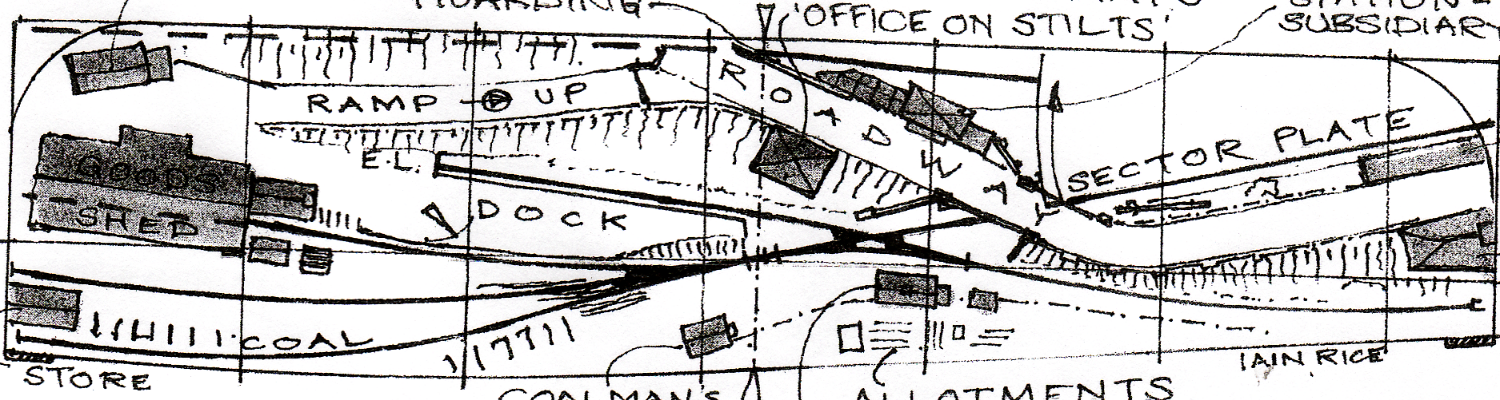

This is an old Iain Rice plan that I rediscovered.  A UK themed switching layout – originally designed to use a 3-way point and an outside single slip and no other pointwork.  But a neat little layout, representing a yard at the end of a yard, with the main station under the road bridge.

goods

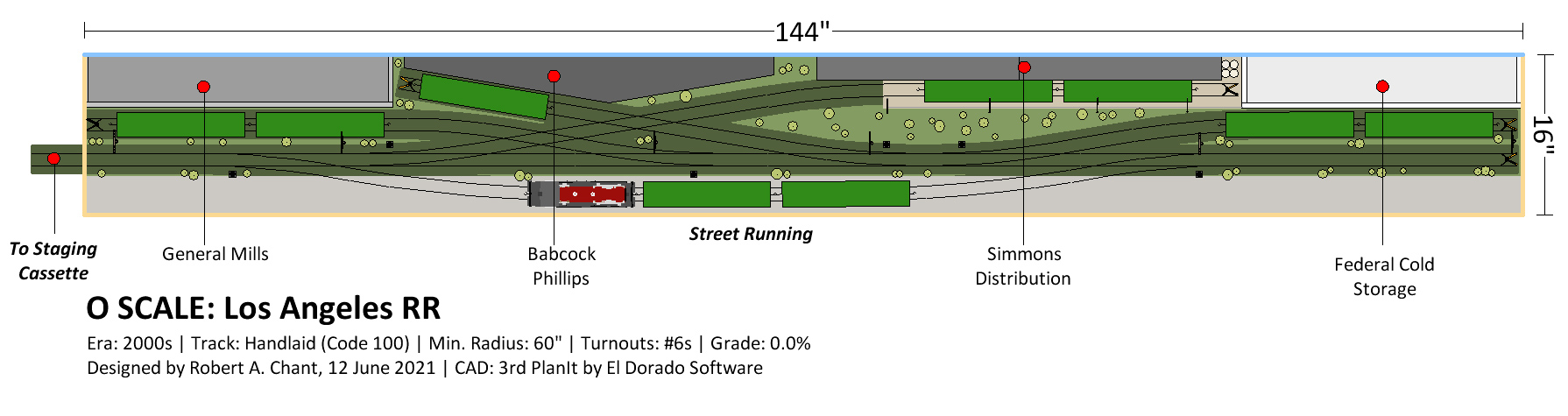

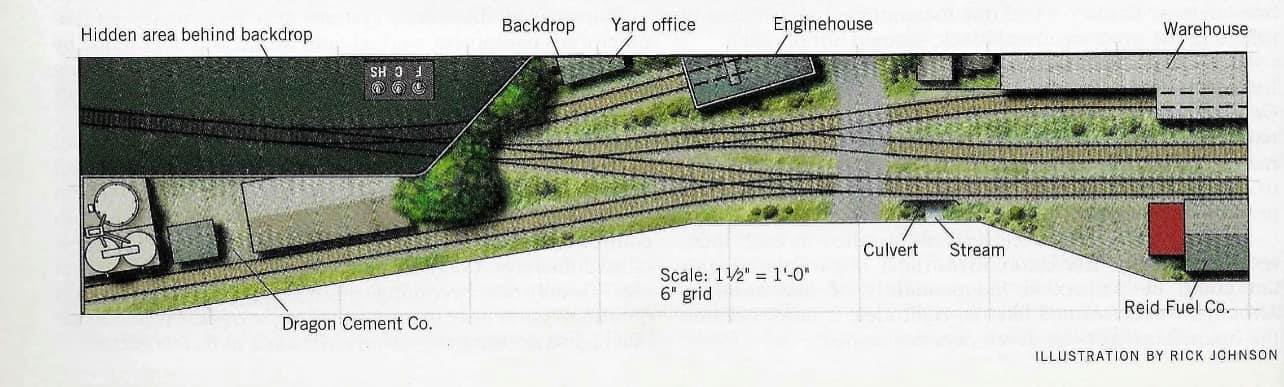

Two US switching layouts, one in HO and one in O.  Both offering a lot of switching fun in a small area.

181081553_10225197603704766_7542559928479064400_n199423916_10225594762400513_3720679000134066705_n

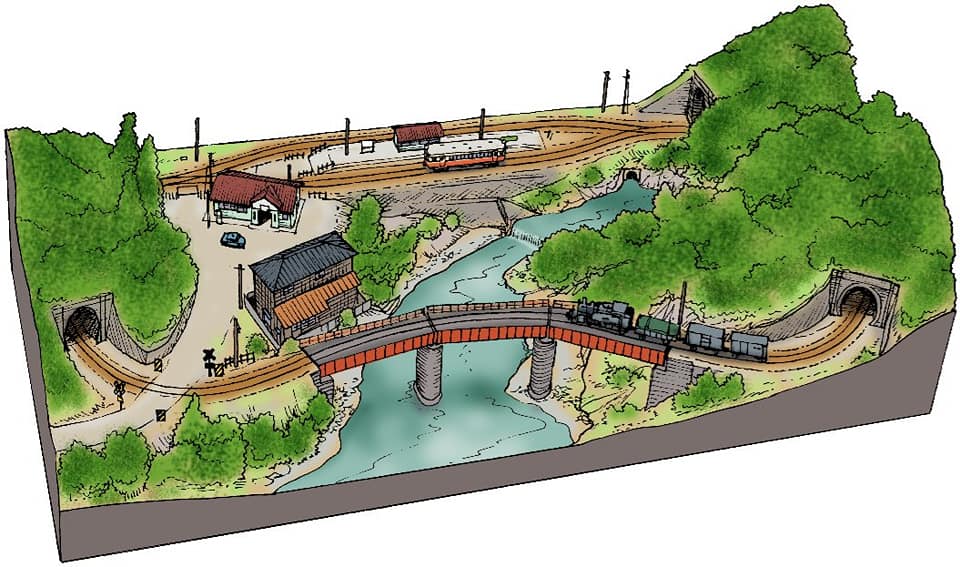

Finally, from Japan a minimum space scenic loop.  A chance to develop your modelling skills at low cost in a small space?

183152537_308163077598457_3799597327354621762_n
