Covid-19 diary – Kuritu II – 1

I’m still fettling point blades for the Minories, but I thought that I needed a diversion.

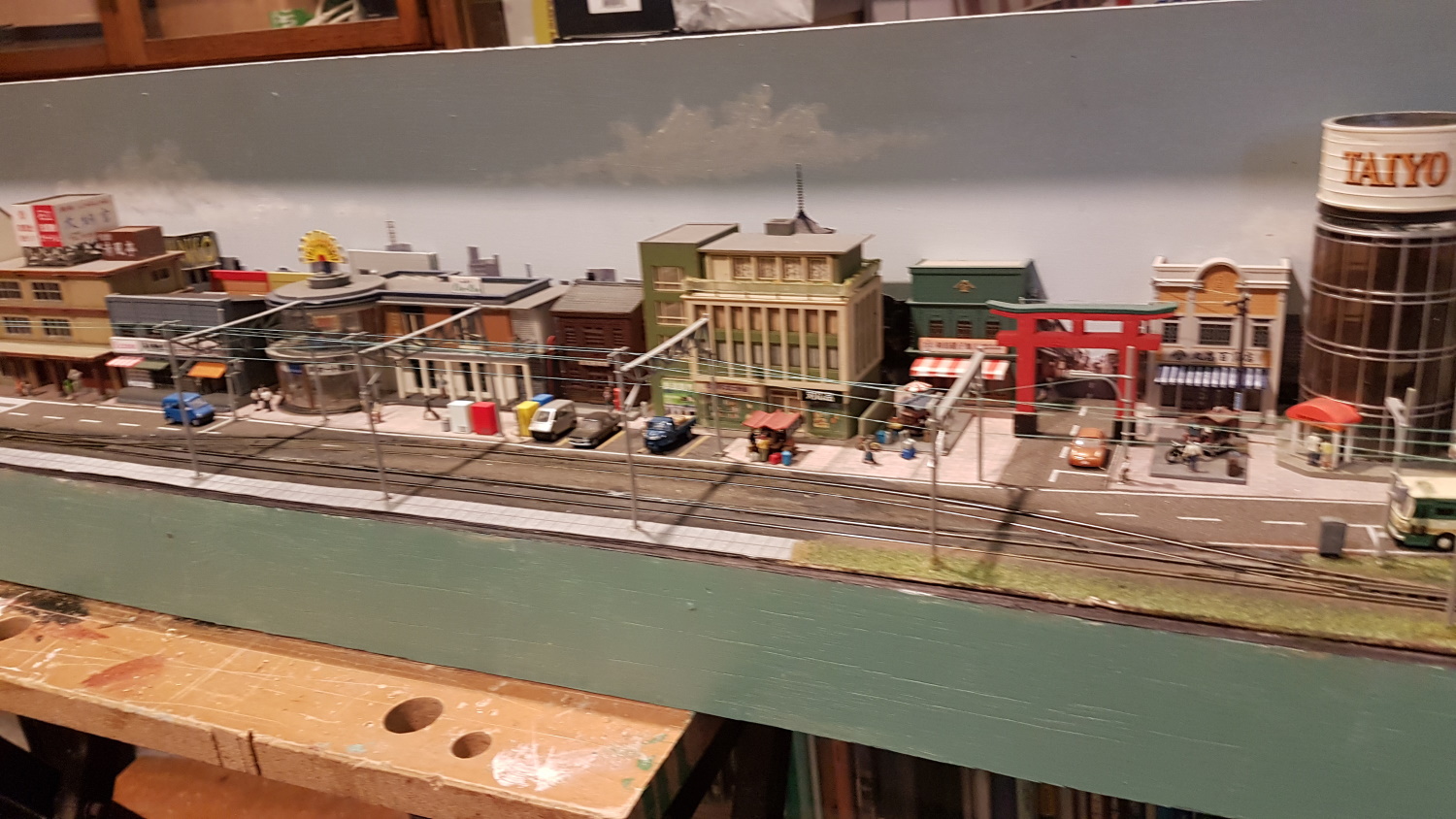

You may recall that I got Kuritu up and running during the first lockdown last year….

I then ran into the problem that a 6′ x 2′ layout is really just too big for my loft – and to fit Minories and my American layout in as well.  (Help, my loft is beginning to look like Paul’s lounge or Mr Atfield’s house.)  Further, getting this lump of a layout out of the loft and to an exhibition would be just too difficult.

I began to wonder whether to rebuild it, and save my favourite bits on a smaller layout.  So I carried out some radius trials with Peco track.  My trams happily went around curves of about 120mm – 150mm, similar to Tomix and Kato tram track radii.

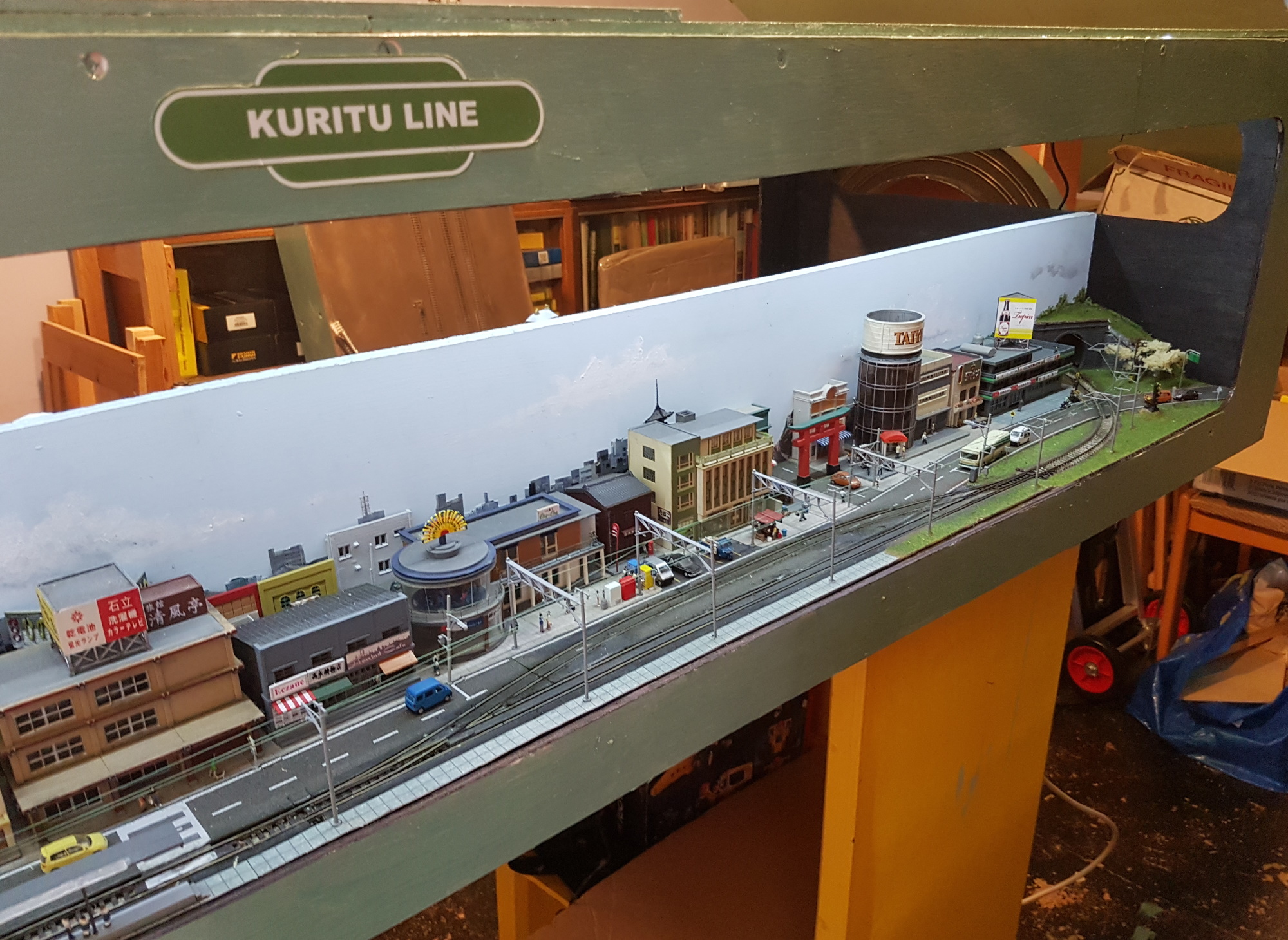

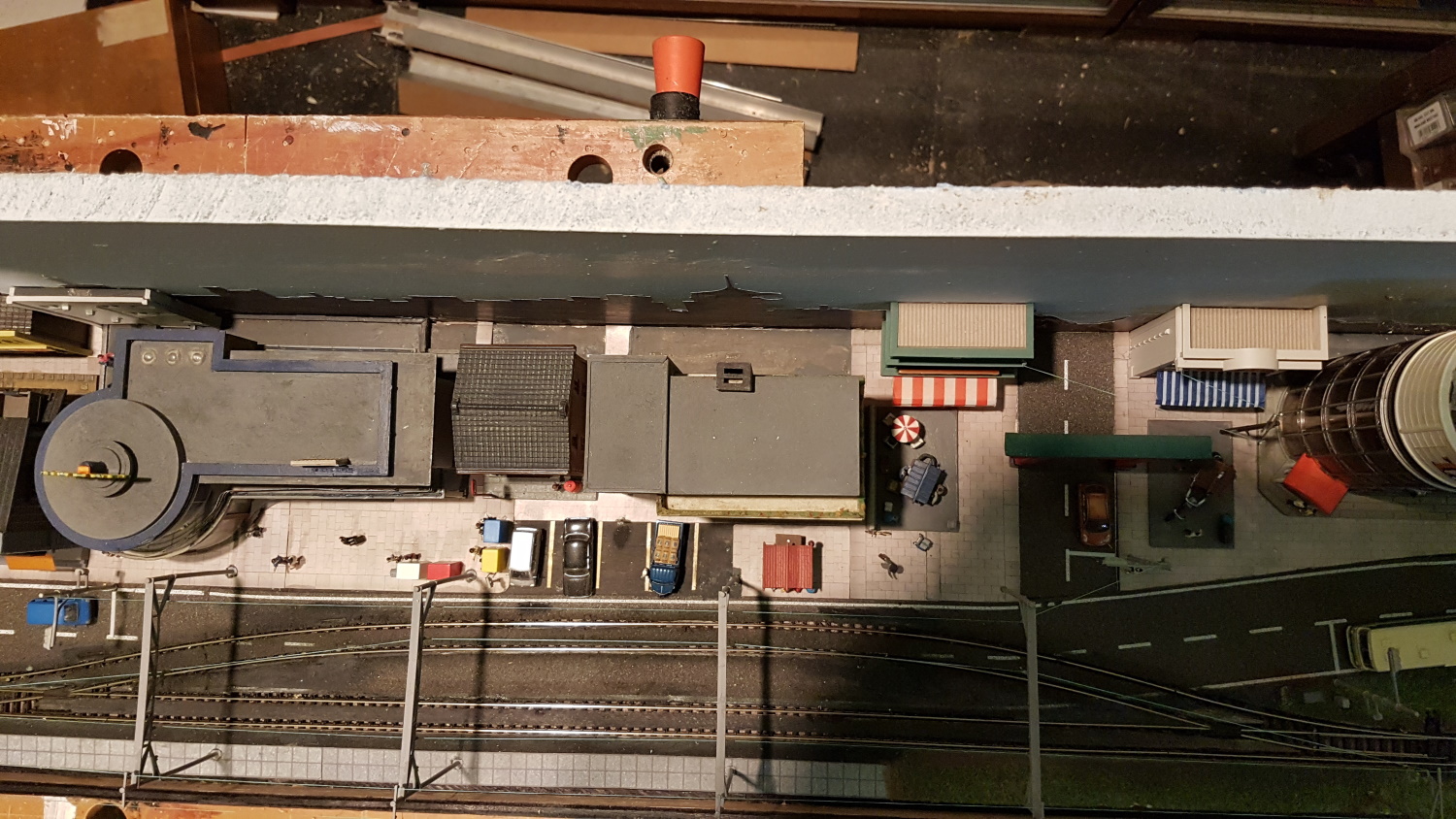

So I took the bull by the proverbials.  I had always far preferred the narrow, urban, side of the layout to the rural one with the tram sheds.  I stripped all the usable scenics off the rural side, then put a saw down the middle of the layout, leaving the city street intact.

So far so good.  I could then make a smallish 4′, 5′ or 6′ x 10″ wide layout, perhaps with a fiddle yard at each end.  However, I rather liked the idea of a roundy-roundy line, like the original Kuritu.  And frankly, although the scenics still look good, the baseboard was getting a little tired.

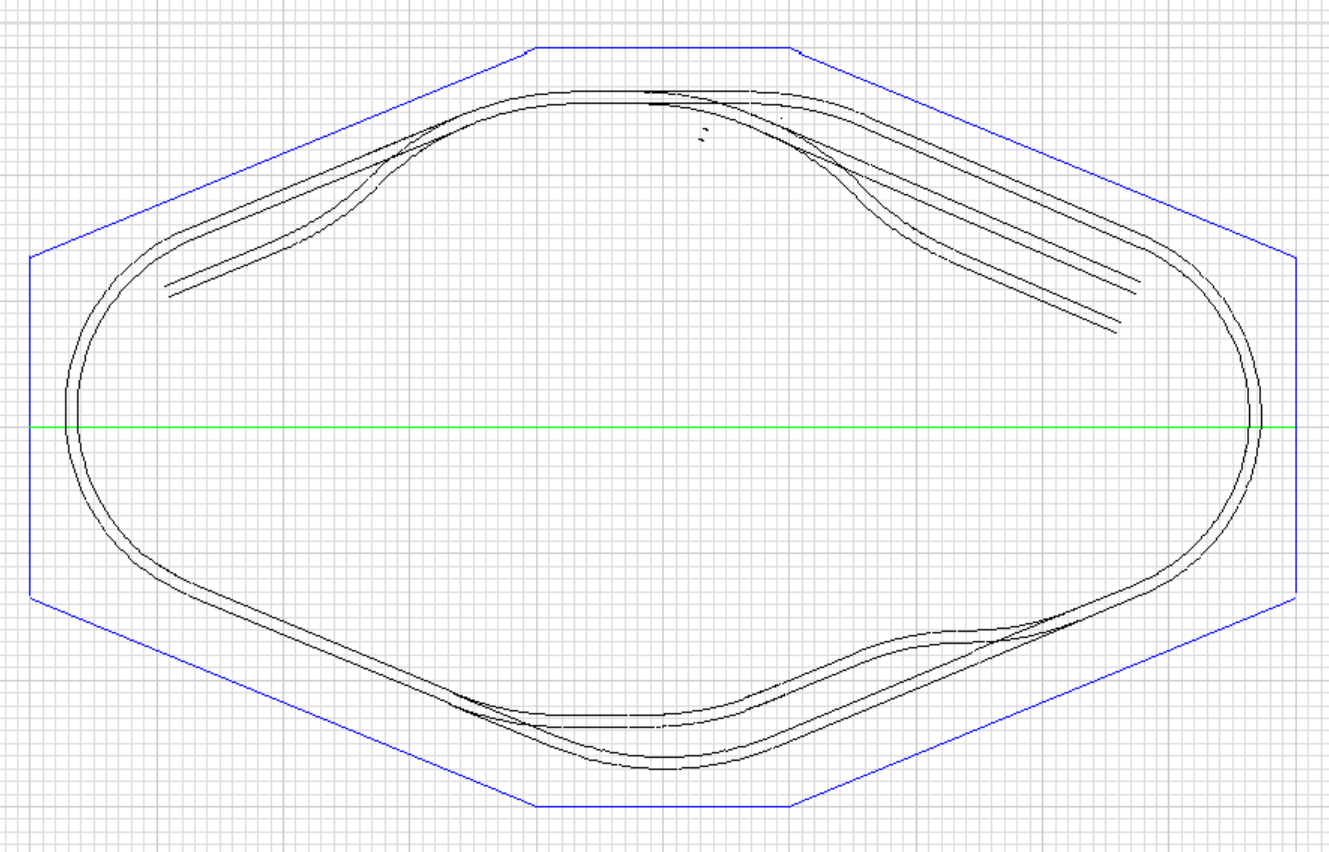

So, back to the drawing board, and a little design later I came up with this layout.  1000mm x 400mm, using some Peco Setrack points that I had around.  The curves at the end of the layout are about 150mm.

I like this design a lot – I can run 3 or 4 trams on it – and it could be DC or DCC.  There will be room for most, if not all the buildings from Kuritu, though I shall have to redo the road system and pavements.

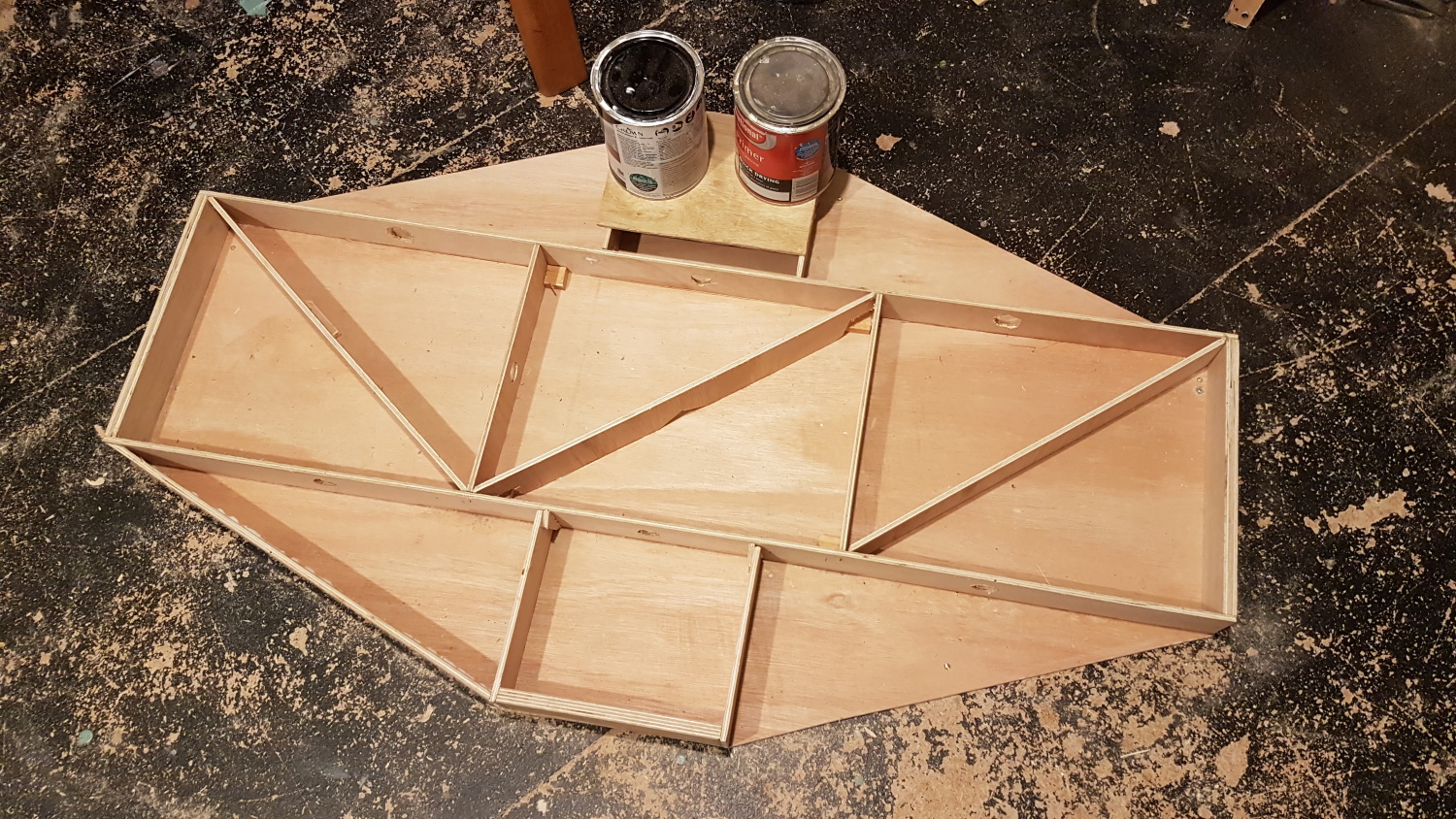

And as of this evening, here’s the baseboard nearly complete.  Mostly odds and ends of 6mm ply that was around the loft.  I’m hoping that the board doesn’t warp – I built it on the floor and screwed the board to the loft floor to keep it flat.

If all’s well, I have material for some legs for it, a lick of paint, and we can lay the track.

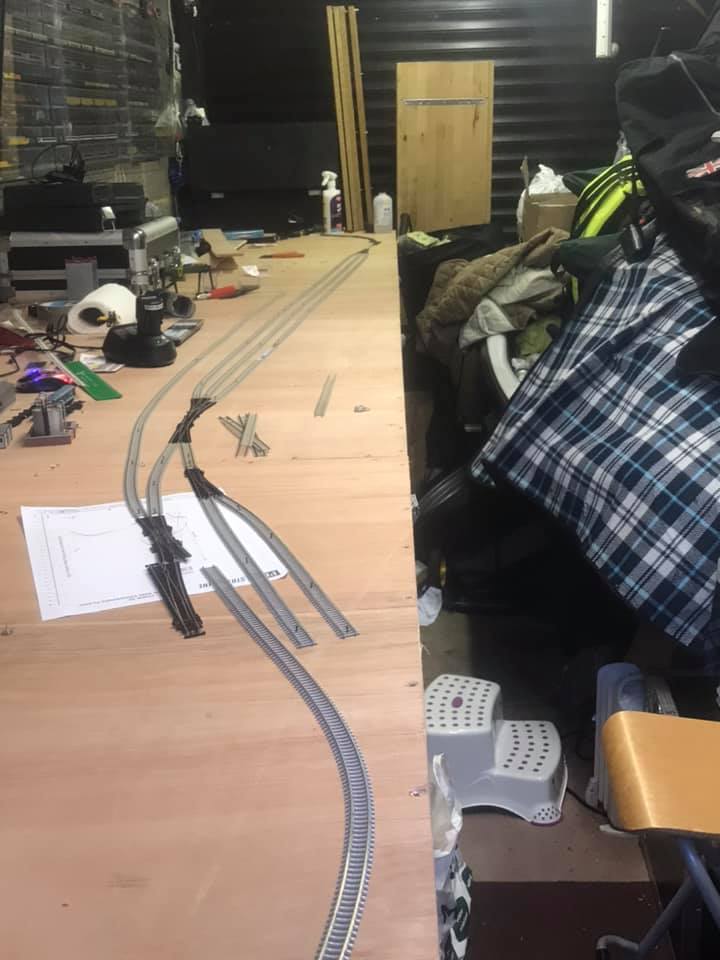

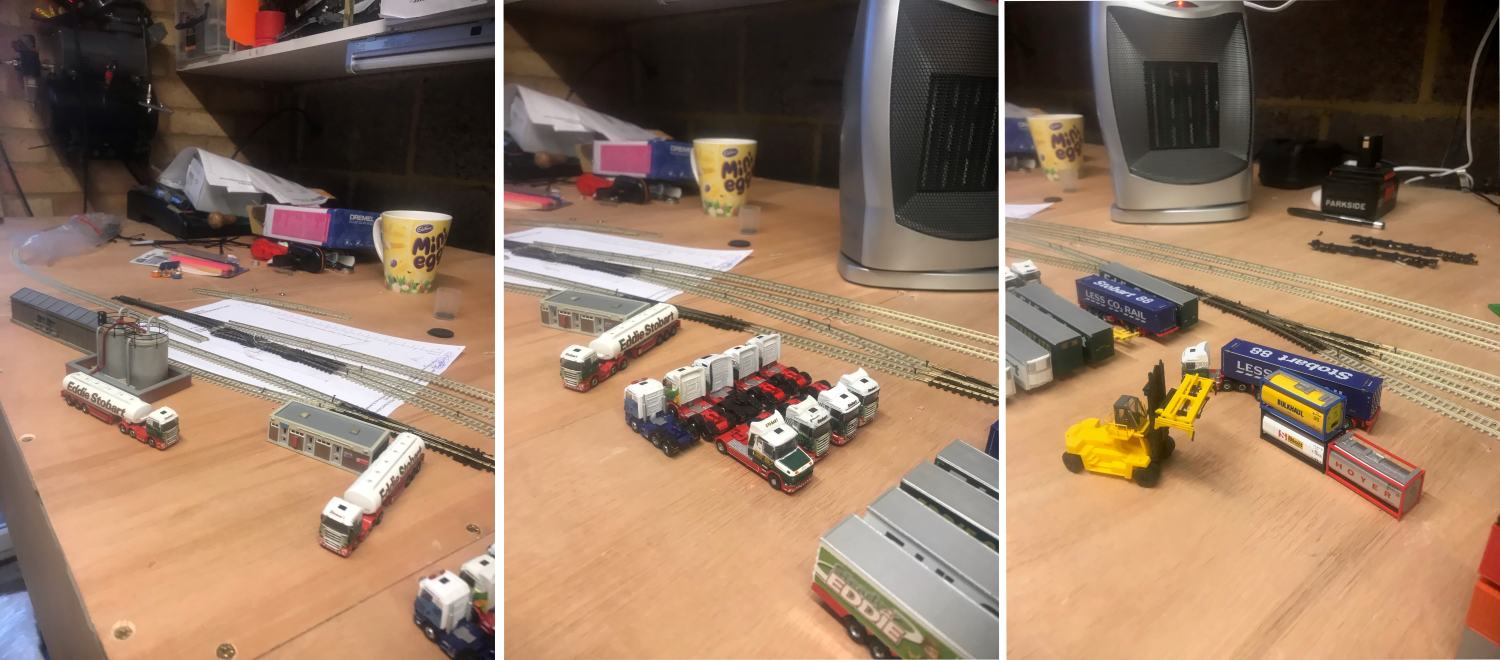

Meanwhile, Martin is making good progress with his new layout, though he seems to have got a little distracted in planning the scenery and playing with the containers!



Posted in ESNG, Jon's layout ramblings, On my workbench | Tagged , , | Leave a comment

Cat-astrophe?

I draw the line at cat pictures on my blog, but had to include this bit of tres-pussing.  The BBC tells us that it took two-and-a-half hours to get the cat to leave its perch!

I wonder whether the new Kato models will include a small cat?  I can see this being reproduced on a few exhibition layouts (whatever they are) in the future.

But you can’t travel without a ticket!  Meanwhile….

Posted in Inspiration, Out and about, Prototype, Weird and wonderful | Tagged , , , | Leave a comment

ESNG meeting – 3 March 2021

The usual suspects – except Allan who was getting up for a 4am start at work.  And he’d been vaccinated in the afternoon.  The initial group of seven were soon logged in….

To be joined by a little ‘g’ – that was Graham.  And we also saw trains from Phil and Paul again.  Paul claims to have 34 baseboards now.  Wish I could work that quick!

And the conversation was the usual wide ranging one – from viruses to 3D printing to golf to trains to the weather.  Great to keep in touch, but I hope we’ll be meeting in person before long.

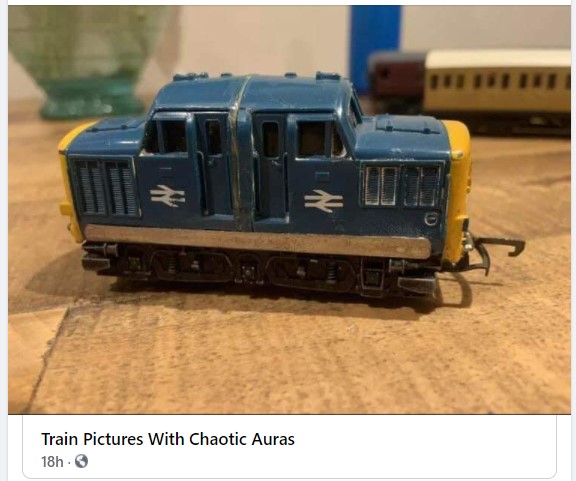

Brian put this lovely loco on screen at one stage.  Another purchase?

And Paul commented after…..

The first ESNG Zoom meeting of the month. Very enjoyable, discussions on various railway topics and not too much on current affairs and news for a change. I had trains running, a ‘test it out and keep your fingers crossed session’ on my revamped layout. It basically worked OK, I had 10 trains running simultaneously, but there were one or two gremlins. It will be much better once I have built a proper control panel which will be my project for next weekend.


Having exchanged emails with Stefan about Stuttgart 2021, he sent me this picture of winter fun in the garden.  In this scale, working snow ploughs could even be possible!

And for anyone building a new layout, here are a few suitable names.  There are, of course, many other strange (and often rude if you have that sort of mind) examples.  Indeed, why name your station ‘Curry Mallet’ when ‘Queen Camel’ is just down the road?  For Redhill locals, ‘Donkey Town’ is next to Bisley, between Lightwater and Woking.

Posted in ESNG, ESNG meetings | Tagged , , , | Leave a comment

Potpourri #1017

No modelling progress – I’ve been enjoying the early spring sunshine, and reading one or two books.  I must get back to some modelling again!

The trouble is that there are so many great videos to watch on line.  I’m quite old enough, but I wouldn’t mind a visit to Kings Cross in this era!

This is how I remember it.  Still a lot of interest….

And some ‘real’ trains….

I know that we have a few ESNG members who are bus fans, too.  These all make good viewing.  I just about remember seeing London trolleybuses in East London on family trips up to Norfolk.  And then seeing them on my first visits to Tbilisi at the start of this century.  Once again, they had soon disappeared…..

Posted in Inspiration, Out and about, Prototype | Tagged , , , | 1 Comment

ESNG at work

Well, we might just be able to see the light at the end of the tunnel, and it may not be a train!  Club meetings could happen in a month or two, all being well, though there may be a longer wait for curry.  And there are rumours that TINGS is planning to go ahead.

As usual, club members have been busy.  From ESNG Facebook…..

Brian continues to revamp his layout.  It’s easier now the garage is above freezing!

Dear All,

I’ve been running in my new locos and rolling stock – here’s an update.  I think I’ve bought virtually all the Dutch items that Scograil had on offer !!

Cheers, Brian

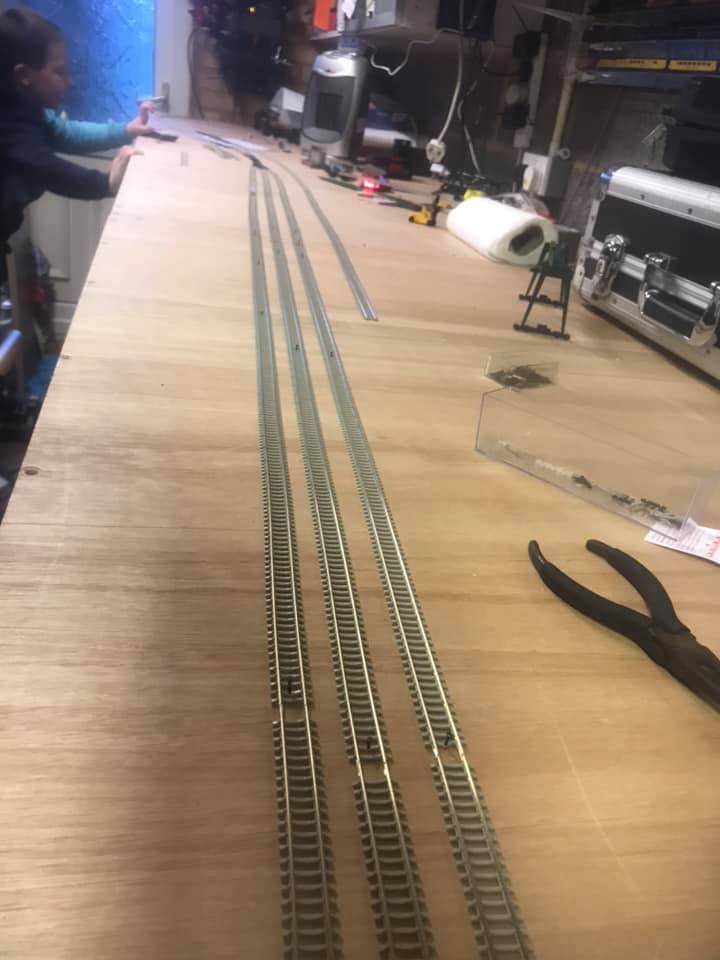

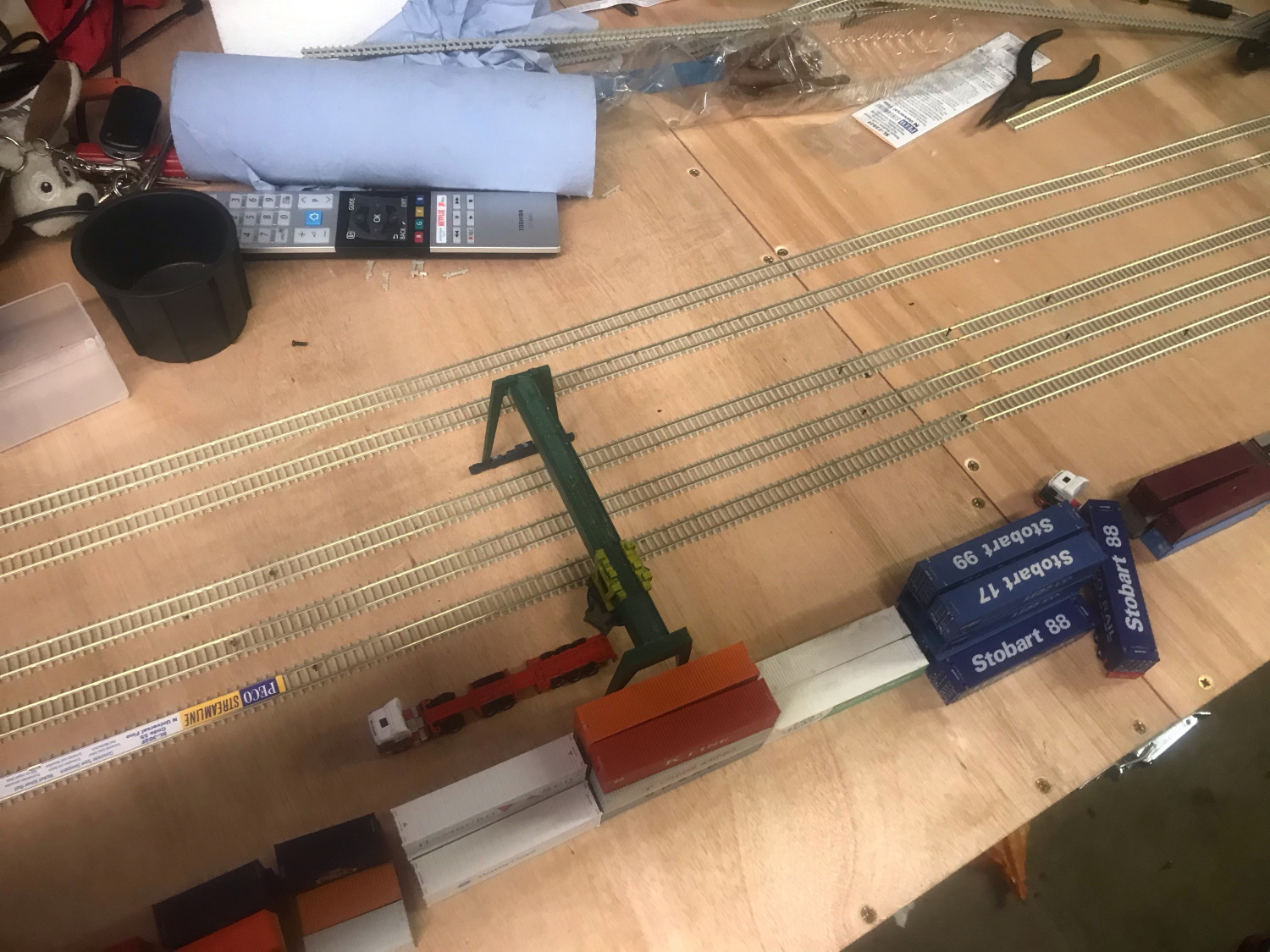

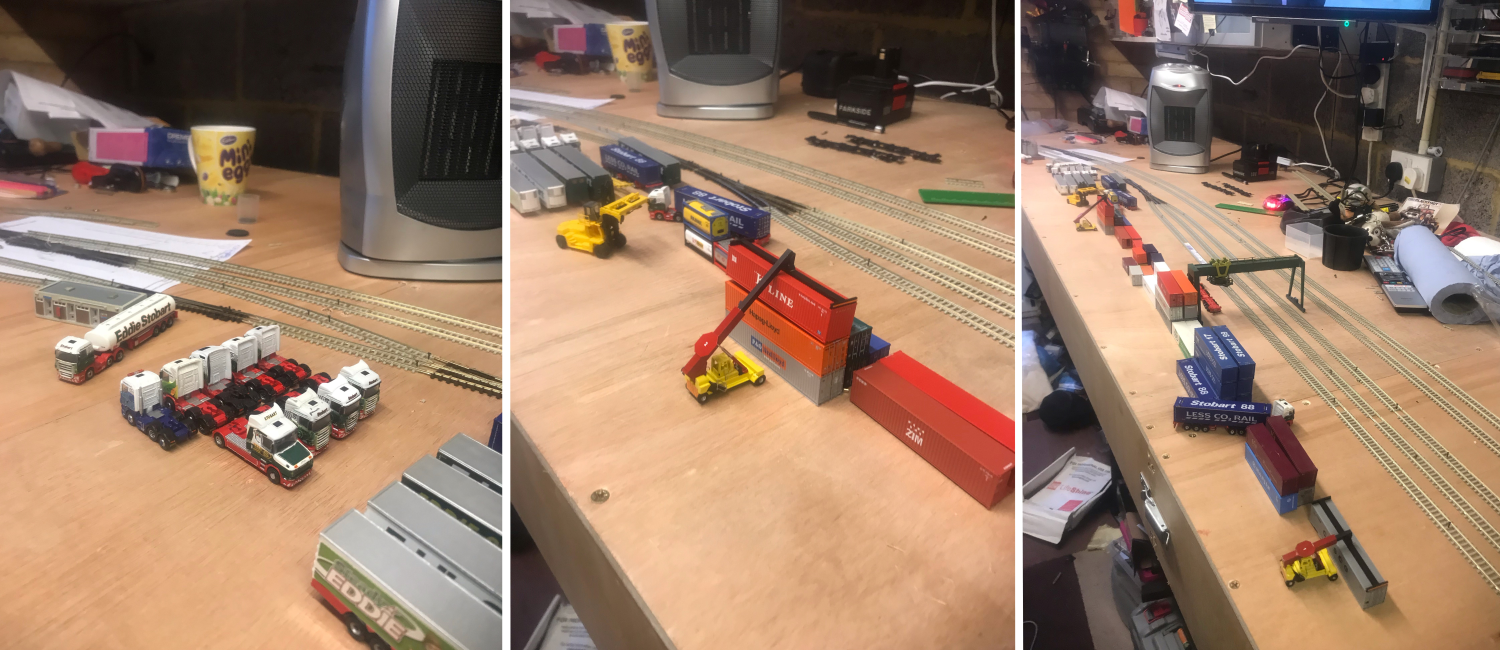

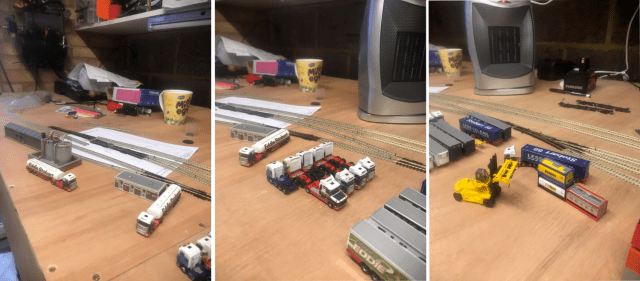

Martin has continued to lay track….

Mr Rowlatt has been rude to Mr Atfield.

‘I see Mr Atfield has been busy again……’

Trouble is, I could almost see it happening….

And I got fed up with filing point blades, and did something else….

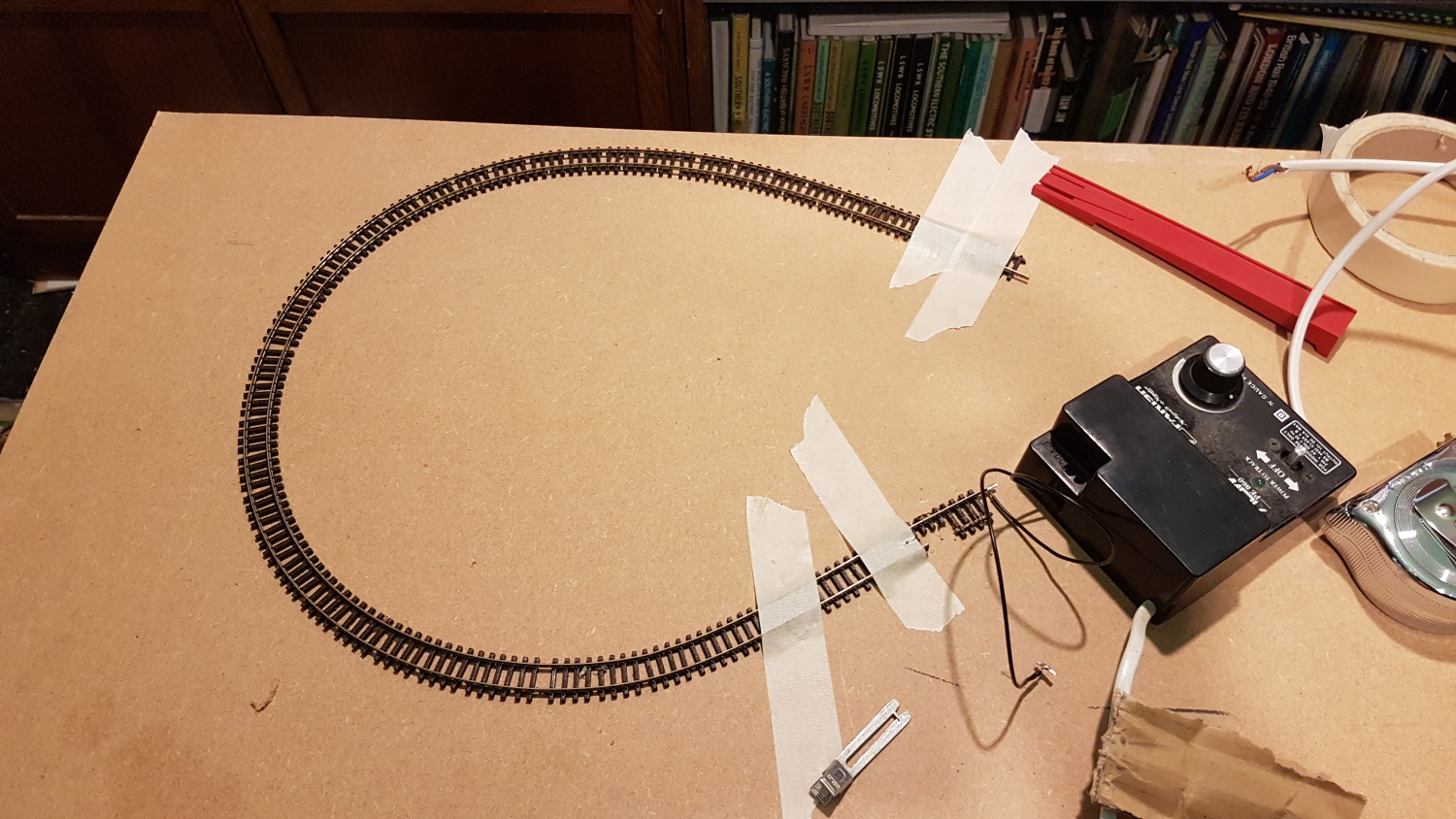

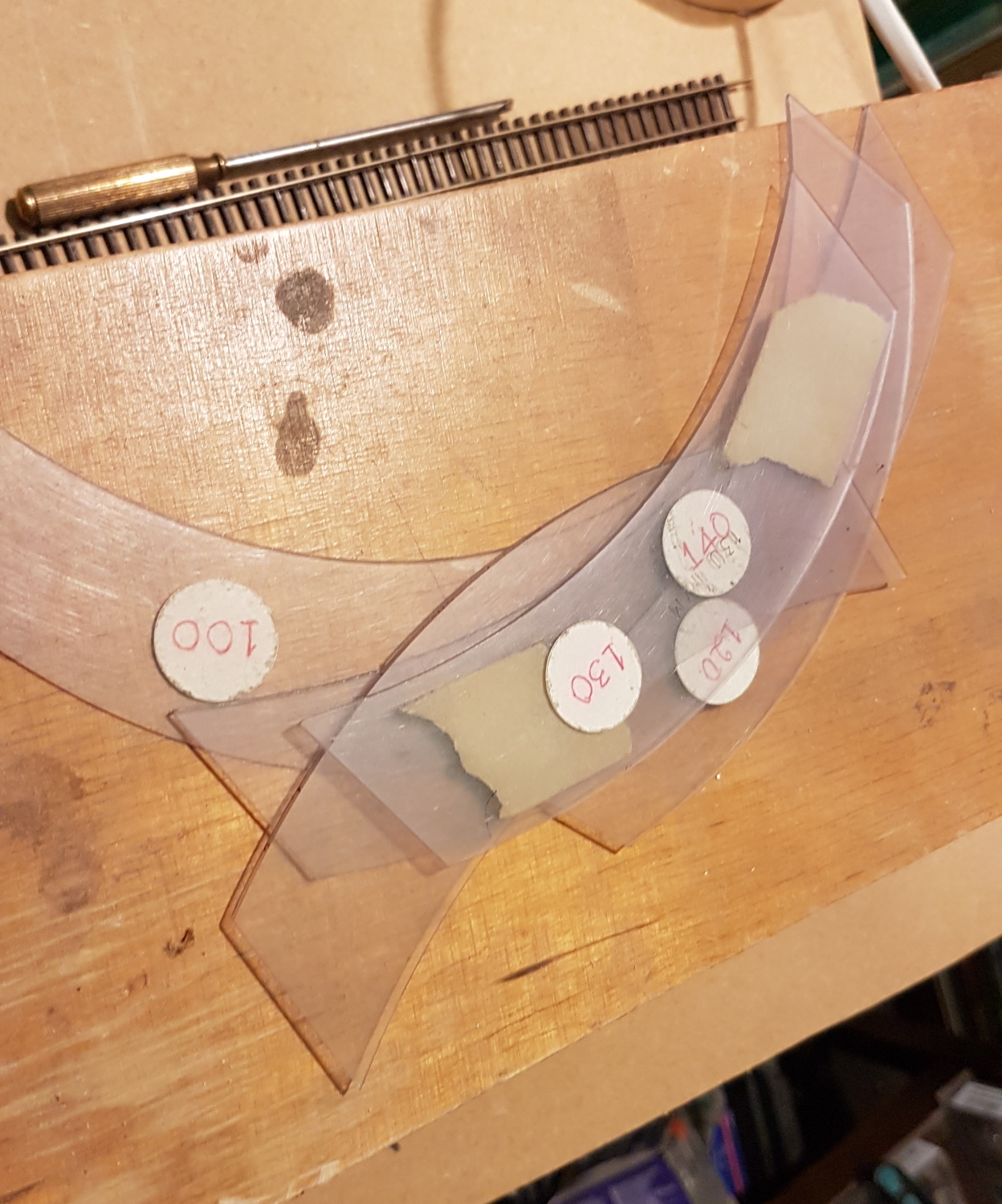

A check to see what radii my trams will go around.  140mm, easy, 120mm, OK too.  I may get a little distracted from Minories….

Posted in ESNG, ESNG meetings | Tagged , , , | Leave a comment

A Minories of my own – 14 – slow

Not much to report.  I’m back to fighting fit after my vaccination – little in the way of side effects – but haven’t been able to get much enthusiasm for track laying.

I’ve added some more rails….

Added the bases for the rest of the points – together with frogs and some rails….

And tried out the plain track jig.  Easy to use and effective.  My patent chair picker is in the foreground.

I guess that I’ve paused now as I have 14 point blades to file and fit.  Not my favourite job,  but having made one, and rejected it, I think that with the Finetrax jig it’s not too bad a job.  I just need to get on with it.

Still, I’ve made some money selling surplus model railway stuff this week, and come up with yet another layout idea!


Train spotting isn’t the same nowadays.  Not only have the Merchant Navy’s gone, but also school caps!  And you could almost eat your lunch off that platform….

Back another 20 years, and the electric train was something new, and special….

Perhaps I’m just suffering lockdown cabin fever?  I’m beginning to drool at the thought of a full English breakfast and a nice cup of coffee.  And the ESNG faithful are getting desperate for curry…..



Posted in Jon's layout ramblings, Layout design | Tagged , , , | Leave a comment

Potpourri #1016

Not much to report on the railway front.  I was delighted to get my first covid-19 vaccination on Wednesday, but have felt a bit laid back for a couple of days after.  Nothing untoward – well within the normal day-to-day ups and downs, so a definite result.

So here are the usual mix of photographs that caught my eye.

I came across these pictures of a little ‘O’ gauge plank layout.  Interesting modelling…..

Nothing more elegant than a Drummond T9.  Lined black really suited them.

Now this is a ‘Minories’ on steroids.  I think that it’s Cannon Street again….

Dunbridge station in 1962, with an SR DEMU in attendance….

Love this photo from Peter Skellon on Facebook:

Here’s the CLC letter box for Trafford Park shed, which was located to the side of the entrance steps of the footbridge over the Manchester-Liverpool line. The photo was taken on 23 May 1969. I understand the letterbox has survived and is in a postal museum somewhere.

(It’s on the Isle of Wight.)  The rivalry between the LMS and LNER was such, that even when ‘cooperating’ on the Cheshire Lines Committee, they had separate post boxes!

And this is dedicated to our local bus drivers…..

Posted in Inspiration, Out and about, Prototype | Tagged , , , | Leave a comment

Rule 1…. and then some

We’ve all heard of Rule 1 – “It’s my railway…..”  But thank you RMweb for these additional rules, that we all know are very true!

Rule 2:  “If it looks right, it is right”

Rule 2a: “If it looks finished, it is. Leave it alone and don’t fiddle with it.”

Rule 2b: “No matter how accurate you think have made something, there will always be someone who can point out the bit you got wrong.”

Rule 3: “There IS a prototype for everything – you just have to look hard enough.”

Rule 4: “If the small bit you have is really vital, it WILL suddenly exit your control with a ping sort of a noise, be heard to ricochet off one or two things close by and then disappear, claimed by the infernal carpet monster. The level of importance of said component is in direct proportion to both the speed it exits your tweezers and the ingenuity and/or illogicality of its final hiding place.”

Rule 5: “The carpet monster is building a quite respectable collection of your favourite scale model railway components.”

Rule 6: “There must be a bus crossing a bridge over the railway.”

Rule 6a: “And/or an Eddie Stobart lorry…..”

Rule 7: “There’s nothing wrong with box opening (see Rule 1)”

Rule 8: “Always expect the worst. At the most critical point in your modelling session, three things may happen: (i) you’ll run out of glue, (ii) a family member will burst open the door and ask where the vacuum cleaner is, or (iii) you’ll suddenly remember you left the dog tied to a tree in the park. On the rare occasion where none of this happens, there will instead be an earthquake.”

Rule 9: “If you really – really – want a model of some unusual prototype, then you’ll have to build it yourself.”

Rule 10: “If you are forced down the road of building your own loco / rolling stock / multiple unit, you’ll find that decent drawings – and most of the parts you need – are next to impossible to find (and prohibitively expensive if you do manage to find them) – and none of the parts fit together properly.”

Rule 11: “If/when you almost finish your build, you’ll find a well known RTR manufacturer offering a more accurate version of the same model at about a tenth of what it cost you to build your version.”

Rule 11a: “However, this doesn’t necessarily mean that said RTR model will actually have been supplied to any shops and it will probably have a five year lead time.”

Rule 11b: “If/when you’ve decided to bite the bullet and you’ve scrapped your scratchbuilt and kit built models you discover that said RTR model has already sold out.”

Rule 12: “Who said there only had to be 10 of these rules?”

Rule 13: “If you’re modifying RTR models or kits, you can almost guarantee that some parts (or bit of them) will get damaged – enough to make them unusable in the build.”

Rule 14: “A number of the pieces you discard as a result of such damage might turn out to have other uses (possibly even unexpected uses). ”

Rule 15: “When you decide to embark on a modelling/detailling project you discover that a key supplier has recently stopped making the parts you need, through lack of interest, retirement, or worse.”

Rule 16: “You will never have any useful leftover bits in stock to complete a model, unless you work for a magazine where the correct leftover bit you need is always available!”

Rule 17: “After hours and hours of research, then building (then leaving the model for awhile to see if the illusive photo of the type and era of the vehicle to be modelled had a left or right-hand ‘spridget’ fitted) and then taking the plunge (after a three month cooling off period) painting, applying transfers, weathering etc (to the best standard you have ever done it to date) etc. The illusive critical photo (of the specific detail that you were after) appears, as if by magic, a week after completion of the model, and yes as sure as eggs is eggs, you have applied the wrong type of spridget, the wrong way around and on the wrong side!”

Rule 18: “A recognisable model is a model of the prototype running in a credible background”

Rule 101: “If it annoys you, Get Rid of It and Start Again.”


Rule 101 has been applied to a lot of my modelling efforts…..

Posted in Inspiration, Out and about, Prototype, Weird and wonderful | Tagged , , , | 2 Comments

ESNG meeting – 17 February 2021

A busy evening, with plenty online.  Phil seems to be multiplying, with three of him in the meeting at one point.

Graham came, went, and returned.  Phil and Paul ran trains….

Simon showed off his new Bachmann Percy.  We were remarkably coherent, considering that three of us had been vaccinated against Covid-19 this afternoon.  Or perhaps it made little difference?  But it does mean that ESNG club nights are becoming more possible, when the government lets us out to play.

And Maxine joined us for the end of the evening, making 10 of us online.


And another large parcel arrived chez Bartlett….

Typical box shifter, as it contained a very small box….

Yet another one for my Terrier collection….

Posted in ESNG, ESNG meetings | Tagged , , , | Leave a comment

A Minories of my own – 13 – a big decision?

And can you guess what it is, from the picture below?

I’ve decided to go DCC for this layout.  I’ve already got the point operation bits to operate them on DCC, but I’ll also go for digital train operation.  Why, on a small layout:

  • Easier wiring for a terminus that will need one or more isolating section on each platform and siding.
  • Easier wiring for the traverser/sector plate.
  • Easier wiring between baseboards.
  • Can keep more than one loco/EMU parked closely on a track.

It will be easy enough (if a little expensive) to convert the stock to DCC, as most are DCC ready, anyhow.

So the picture above shows the two power buses, one for track, one for points.  I prefer to keep them separate, so that any electrical problems are easier to locate.

I decided to build the trackwork in-situ, but the board for the station throat on viaduct is not fixed, and I can work on it on the workbench.  Here, I’ve trimmed the Finetrax bases to fit the track layout, and glued them down.

A little fiddle was needed to wire up one frog.  It lies on a road bridge, so I used solid wire and chased it into the bridge soffit.  Not very neat, but will be hidden.

The frogs have a wire for power soldered underneath and fed through the baseboard.  I’ve also added the check rails.

First length of track in place!  The end of the board uses some pre-cut copper-clad sleeper sections that I bought from the states a while back.  The sleepers are too close, but this track will be hidden by the trackside buildings, and will form a strong end to the board.   One reason to lay out the point bases early in construction is to use as much ‘continuous’ rail as possible, and avoid joints and extra droppers being needed.  Here, the rail runs from one point up to the frog of the crossover.

A close up of the frog.

Getting the individual chairs into place is a fiddly job, and I’ve lost a few as they ping across the room.  However, like many other jobs, it’s a matter of working out a technique, and using the right tools.  I have found it easiest to place one chair at a time, but to thread each one onto a short length of rail and then locate it into the sleeper base.  The rail threads through the chairs easily enough, providing one files the rail end slightly to allow it to slip into the chair.  After getting the rail in place, a wash of solvent fixes chairs, and actually the rail as well.

Next adventure will be to try and file up a set of point blades.
